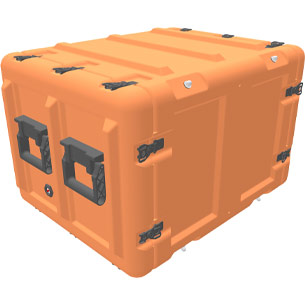

MIN MAC RACK™
Light/Medium Duty Rack Mount Case
Superior Compact Mobility
The lightweight, compact design of the MIN MAC Rack? double ended cases, offer light to medium duty protection and boast industry leading shock performance. Its angled precision-engineered elastomeric shock mounts are fine-tuned to match the weight and fragility of your equipment, ensuring maximum shock and vibration isolation.
High strength, heat treated, square holed steel frame provides a range of mounting options. If you try to make the most of limited space, but still require a rugged protection, Min Mac Rack? is the answer.
Min Mac Rack? cases are manufactured in Germany.
Specifications
Sizes
- 4U, 6U, 8U, 10U, 12U
G-Rating
- 50 - 80
Payload
- < 50kg
Sway Space
- 13mm
Base Features
- Square holed steel frame
- Lightweight, compact, and inter-stackable
- Shock mounts protect equipment from shock and vibration
- High-strength steel rack frame supportsequipment from 10-50 kg
- Patented, wide-design, Comfort Grip Handles? come as a standard option
- Variety of accessories and options
- Manufactured in Europe
- Edge casters standard in deep lids
- 10 different models, frame heights 4-12U in two depths, 480 and 610mm
Options/Accessories
- Humidity Indicator
- Lid Storage Pouch
- Lockable Cable Catch
- Drawers
- Shelves, Fixed and Sliding
- Interlocking Catches
- Cage Nuts with Screws
- Comfort Grip Plastic Handles
- Stainless Steel Black Catch and Strike
Applications
- ? Rack mountable precision test equipment
- ? Electro-mechanical
- ? Medical and biological diagnostic equipment, memory storage devices
- ? Meteorological instruments
- ? Mobile operations
- ? Broadcast and video gea r
- ? Laboratory equipment
- ? Aerospace instrumentation
- ? Servers, military mission planning
- ? Flight simulators
